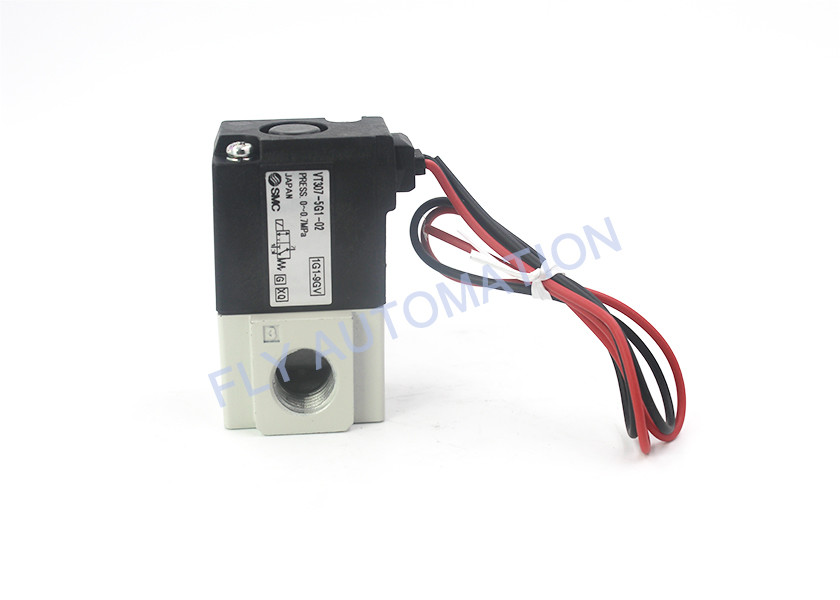

SMC VT307-5G1-02 3 Port Pneumatic Solenoid Valve Direct Operated Poppet DC24V
Caution
Make sure that dust and/or other foreignmaterials do not enter the valve from theunused port (e.g. exhaust
port).
This product is delivered as N.C. valve.
lf N.O. valve is required, remove mounting screws of the requiredvalve and turn over the function plate.
(Make sure that there aregaskets on both sides of the plate.) Then,tighten the mountingscrews to fix the valve
to the manifold base.
Warning
when mounting a valve on the manifold base,N.C. and N.O.canbe reversed by the function plate orientation.
Also,since thecylinder operates in reverse,confirm if the function plate iscorrectly mounted or not.
1. Energy-saving type: 1.8 W
2. A single valve with various valve functions (Universal porting type)
3. Low concentration ozone resistant
Rubber seal material: HNBR for main valve
4. Mounting dimensions are interchangeable with the existing product.
5. Manifold type no.: VV307

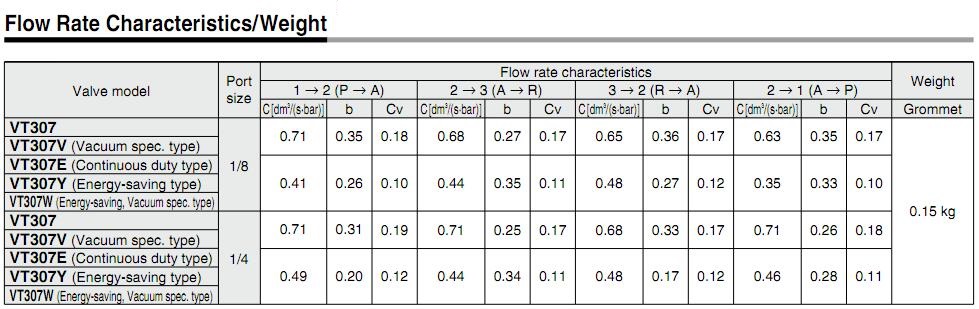

| Type of actuation | Direct operated type 2 position single solenoid |
| Fluid | Air |
| Operating pressure range | 0 to 1 MPa (High-pressure type), 0 to 0.7 MPa (Standard type) |
| Ambient and fluid temperature | –10 to 50°C (No freezing) |
| Response time Note 1) | 20 ms or less (at 0.5 MPa) |
| Max. operating frequency | 10 Hz |
| Lubrication | Not required (Use turbine oil Class 1 ISO VG32, if lubricated.) |
| Manual override | Non-locking push type |
| Mounting orientation | Unrestricted |
| Impact/Vibration resistance Note 2) | 150/50 m/s2 |
| Enclosure | Dustproof |
| Electrical entry | Grommet, DIN terminal |
| Coil rated voltage (V) | AC (50/60 Hz) | 100,200,110,220, |
| DC | 24,12 |
| Allowable voltage fluctuation | –15 to +10% of rated voltage |
| Apparent power Note 3) Note 4) | AC | Inrush | 12.7 VA (50 Hz), 10.7 VA (60 Hz) |
| Holding | 7.6 VA (50 Hz), 5.4 VA (60 Hz) |
| Power consumption Note 3) Note 4) | DC | Without indicator light: 4 W, With indicator light: 4.2 W |
Light/Surge voltage suppressor
(DIN terminal type only) | AC | Varistor, LED |
| DC | Diode, LED |
After-sales clause:
One year quality guarantee Policy
We will check the goods quality before shipment. If there are some unexpected problems
happen, we hope to solve the problems with buyer through friendly in the following ways:
1, If it is quality problem, buyer can submit argue within 15days after receiving the goods,
buyer must provide photos or video and other evidence to seller for identify.
2, Man-made damaged, buyers take full responsibility.
3, Product quality processing program:
1) The buyer return the products for bad quality reasons for one year (not included those
damages coursed by shipping or Man-made damaged ). A 15% restocking fee is
assessed for any products returned in "used" condition. And then we will send a new
product to buyer and pay for the resend shipping cost.
2) If the goods (total price including shipping is less than 10USD) has quality problems, we
will resend a new product in buyer next order; if buyer don't plan to make a new order in
the near term, buyer can pay the resend shipping cost and ask to resend a new product. If
there is an issue with the products, please contact us– we will solve it as soon as we get
your email.
Product Tags:
|
|
VT307-5G1-02 SMC Pneumatic Solenoid Valves DC24V 3 Port Direct Operated Poppet Images
|
