JOIL Pulse Jet dust collector solenoid valve Pulse Control Instrument

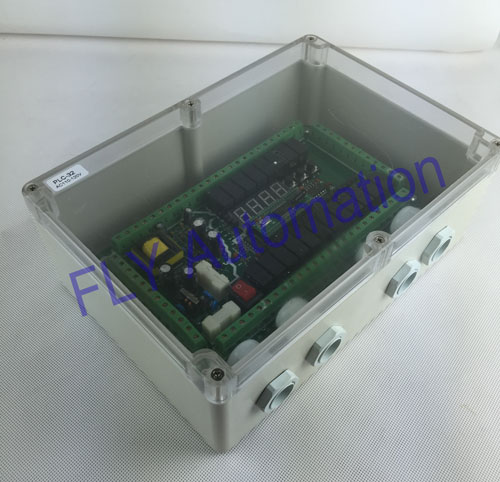

PLC-32 Online deashing controller is the main equipment of the bag type dust collector cleaning system . Its output signal directly controls the pulse jet valve . Made by high technology , it is of high quality and has Long service life . It can be used by many dust collectors . The item adopts the latest anti - jamming design , ensure the system stability , more reliable . It also adopts intelligent microprocessor circuit design so it is flexible control , stable performance , operation visually and convenient , without any operation to adjust the potentiometer . Using 3 soft-touch keyboards to set the working condition . After setting up , auto save , the data will not lose after shut down and power off , Keep the same condition after restart .
Quick Detail :
1) Temperature range : -25℃ - +60℃
2) Body Material : engineering plastic
3) Rated output current : 1A
4) Output Pulse Width adjustment range : 50ms-2500ms
5) Weight : 1.8kgs
6) Size : 248*188*105mm
7) Working medium : Air
8) Rated input voltage : DC220V
9) Rated output voltage :AC48V
10) No violent vibration or shock
Drawings :
Specification :
1. Output Pulse Width adjustment range : 50ms-2500ms
2. Small Operating force
3. Color : transparent
4. Body Material : engineering plastic
5. Rated input voltage : DC220V
6. Rated output voltage :AC48V
7. Long service life
8. Transposition clearly
9. Easy to install
10. Simple operation
Competitive Advantage :
| Our product features | Our Services Guarantee |
| 1) Good quality | 1) Free Samples (Customer pay for the delivery cost) |
| 2) Produce according to Customers’ instruction | 2) Registration support |
| 3) Competitive price | 3) Prompt respond (Reply with 24 hours) |
| 4) Professional Packaging | 4) Photos/videos are available during production |
| 5) None delay shipment | 5) Loading inspection , and send loading photos before shipment |
